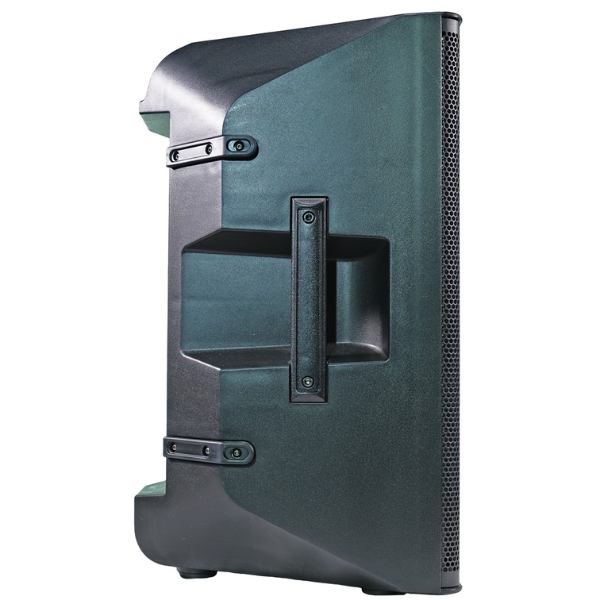

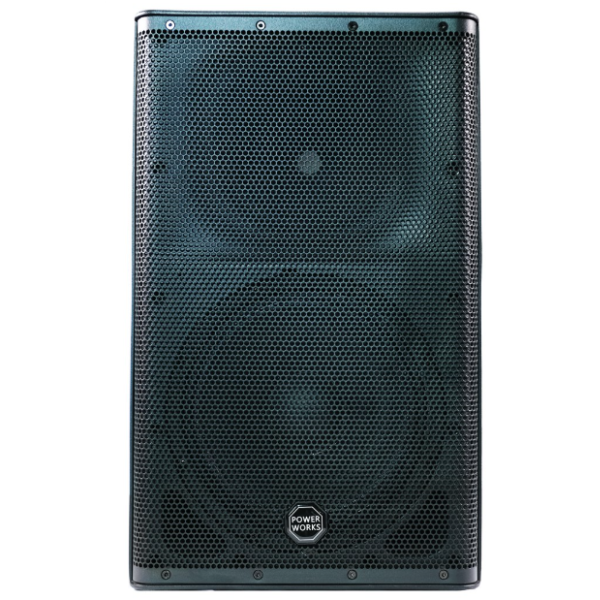

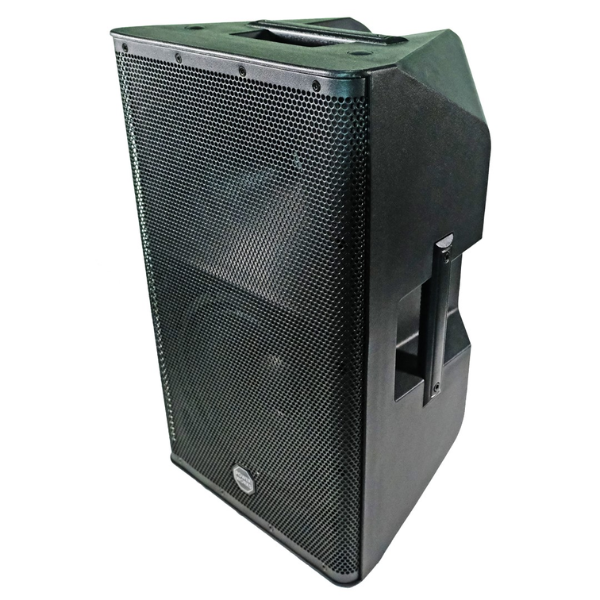

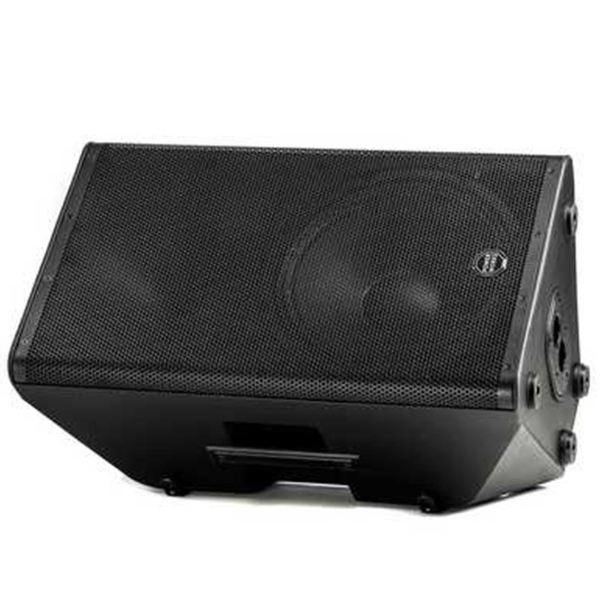

Powerworks APOLLO 10A Powered Speaker

1200W Peak Power Bi-Amped Active Speaker

APOLLO Series speakers are part of a larger range of PowerWorks Pro Audio product line. This cabinet delivers 1200W peak power, Specially selected transducers and compression drivers with a powerful DSP, advanced housing material and anti-scratch black paint: all Components combined to offer the best quality and value for the most demanding Audio professionals. APOLLO series 10″ woofers are punchy and loud; the 1.35” compression driver delivers crystal clear sound. Built-in DSP allows you to select from 4 preset programs (Live, DJ, Speech and Monitor) to easily get your sound that you require for your event. There are three inputs with selectable inputs of Line/Mic with separate level controls.

SPECS

• Frequency Response: 55Hz – 19kHz / -10dB
• Max SPL: 132 dB
• Low-freq: Transducer 10″ Woofer 2″ Voice Coil
• High-freq: Transducer 1.35″ Compression Driver
• Coverage: 90° x 90° constant directivity horn
• Low-Frequency Amplifier: Class-D 250W RMS – 1000W Peak
• High-Frequency Amplifier: Class-AB 50W RMS – 200W Peak
• AC Mains: 220/240V – 50/60Hz
• Power Consumption: (Average/Peak) 400W / 1200W
• Fuse: T6.3AL-250V
• DSP: 4 preset (Live, DJ, Speech, Monitor)

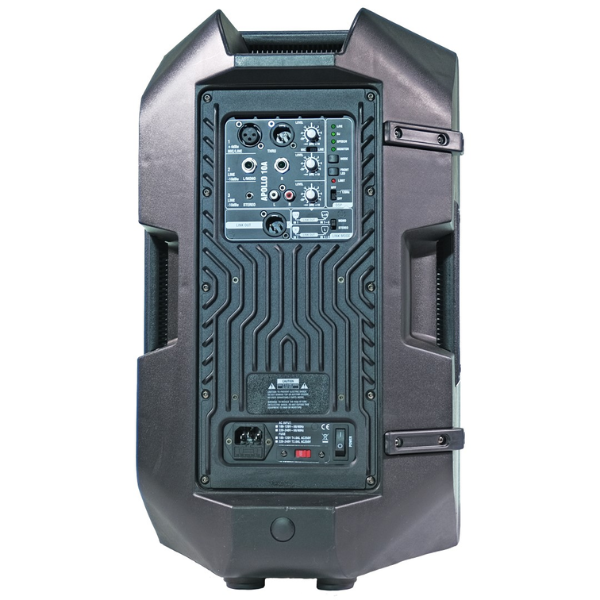

• Input Connections: 1x XLR connector, 2x 63mm Jack, 1x Mini-Jack, 1x RCA Pair
• Output Connectors: 1x XLR Thru Output (Input 1), 1x XLR Link Output with Mono/Stereo selection
• Housing: Material Polypropylene
• Grille: Steel/1mm
  Flyable
• Handles: 2 on sides; 1 on top
• Tripod/Pole Hole: Standard D35mm with dual tilt 0 or 7°
• Speaker Size (WxHxD): 355 x 590 x 372 mm
• Packing Size (WxHxD): 475 x 605 x 400 mm
• Speaker Weight: 13 kg
• Carton Weight: 14 kg

FEATURES Powerworks Apollo 10-inch Powered Speaker Features: Bi-Amped Active Speaker Amplifier – Class-D (low-frequencies); Class-AB (high-frequencies) 1.35″ Compression Driver 4-Preset DSP (Live, DJ, Speech, Monitor) Balanced MIC / Line XLR input with Thru XLR output, Line Stereo input with 2x ¼ “jack, Stereo input with Mini-Jack and RCA, all with independent level controls Link output with Mono / Stereo selection White Logo Front LED with On/Off Switch Sturdy Polypropylene Enclosure with black anti-scratch paint Handles – 1 on top, 2 on sides Pole Mount – Standard 35 mm with dual tilt 0 or 7
